南京华巨电子隆重推出针对智能电表市场专用的WMZ13A系列PTC热敏电阻,工频电压最高耐压达到600Vac,广泛应用于各种仪器,仪表电子产品的初级线圈过流保护热敏电阻。
1.应用范围: WMZ13A系列PTC热敏电阻器是一种对异常温度及异常电流自动保护、自动恢复的保护元件,它取代传统的保险丝,可广泛用于马达、变压器、电子线路等的过流过载保护。热敏电阻器通过其阻值突变限制整个线路中的消耗来减少残余电流值,在传统的保险丝线路中,其熔断后无法自行恢复,而PTC热敏电阻器在故障撤除后可恢复其保护功能
  选用PTC热敏电阻器作为过载保护元件,首先确认线路最大正常工作电流(就是PTC热敏电阻器的不动作电流)和PTC热敏电阻器安装位置(正常工作时)最高环境温度、其次是保护电流(就是PTC热敏电阻器的动作电流)、最大工作电压、额定零功率电阻,同时也应考虑元件的外形尺寸等因素。 如下图所示:使用环境温度,不动作电流及动作电流三者之间的关系。

2.应用范围: 主要用于智能电表、变压器,电机,开关电源,充电器,适配器,仪器仪表,控制面板,家用电器,空调,微波炉等的过流、过载、短路保护。

3.应用原理:


   将过流保护型型PTC热敏电阻串联在电源回路中,当电路处于正常状态时,流过PTC的电流小于额定电流,PTC处于常态,阻值很小,不会影响电子镇流器(节能灯、变压器、万用表)等被保护电路的正常工作。当电路电流大大超过额定电流时,PTC陡然发热,阻值骤增至高阻态,从而限制或阻断电流,保护电路不受损坏。电流电流回复正常后,PTC亦自动回复至低阻态,电路恢复正常工作。


  过流保护型型PTC热敏电阻在电子镇流器(节能灯、变压器、万用表)等过流保护应用领域。

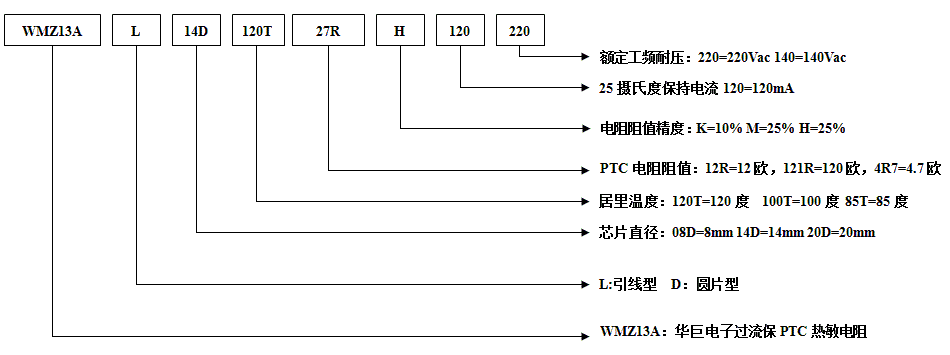

3.型号命名外型结构和尺寸:





WMZ13AD圆片型过流保护PTC热敏电阻

产品型号 居里温度

零功率电阻@25°C

40℃不动作电流

25℃动作电流

电压

最大电流 尺寸
Tc(℃)

R25 (Ω)

In(mA)

It(mA)

Vr(Vac)

Imax(A) T(mm)
WMZ13AD-08D60T12R□080

60±10

12 80 200 220 2 8±0.5 1.5~2.2
WMZ13AD-08D60T15R□080 15 80 190 220 2 8±0.5 1.5~2.2
WMZ13AD-08D60T18R□080 18 80 180 220 2 8±0.5 1.5~2.2
WMZ13AD-08D90T10R□110 90±10 10 110 250 220 2 8±0.5 1.5~2.2
WMZ13AD-08D90T12R□110 12 110 250 220 2 8±0.5 1.5~2.2
WMZ13AD-08D90T15R□110 15 110 240 220 2 8±0.5 1.5~2.2
WMZ13AD-08D90T18R□110 18 110 240 220 2 8±0.5 1.5~2.2
WMZ13AD-06D100T18R□110 100±10 18 110 200 220 2 6.5±0.5 1.5~2.2
WMZ13AD-05D110T18R□110 110±10 18 110 200 220 2 5.5±0.5 1.5~2.2

WMZ13AL引线型过流保护PTC热敏电阻

产品型号 居里温度

零功率电阻@25°C

25℃不动作电流

25℃动作电流

电压

最大电流 尺寸
Tc(℃)

R25 (Ω)

In(mA)

It(mA)

Vr(Vac)

Imax(A) Dmax(mm) Tmax(mm) d±0.02(mm) Hmax(mm)
12Vac/120℃
WMZ13AL-04D120T13R□120-12 120 13.0 120.0 240.0 12.0 0.7 6.5 3.5 0.6 10.5
WMZ13AL-05D120T4R6□250-12 4.6 250.0 500.0 12.0 1.0 7.0 3.5 0.6 10.5
WMZ13AL-08D120T1R8□450-12 1.8 450.0 900.0 12.0 3.0 10.0 3.5 0.6 13.5
WMZ13AL-09D120T1R□410-12 1.0 410.0 1120.0 12.0 3.0 11.0 3.5 0.6 14.5
WMZ13AL-09D120T1R4□350-12 1.4 350.0 1060.0 12.0 3.0 11.0 3.5 0.6 14.5
WMZ13AL-10D120T1R2□600-12 1.2 600.0 1200.0 12.0 4.3 12.0 3.5 0.6 15.5
WMZ13AL-12D120T0R8□850-12 0.8 850.0 1700.0 12.0 5.5 14.0 3.5 0.6 17.5
WMZ13AL-14D120T0R4□950-12 0.4 950.0 2700.0 12.0 5.0 16.0 3.5 0.6 19.5
WMZ13AL-14D120T0R5□870-12 0.5 870.0 2450.0 12.0 5.0 16.0 3.5 0.6 19.5
WMZ13AL-14D120T0R9□430-12 0.9 430.0 1210.0 12.0 5.0 16.0 3.5 0.6 19.5
WMZ13AL-16D120T0R5□1300-12 0.5 1300.0 2600.0 12.0 8.0 17.5 5.0 0.6 21.5
WMZ13AL-20D120T0R3□1800-12 0.3 1800.0 3600.0 12.0 10.0 22.0 5.0 0.6 25.5
24Vac/80℃
WMZ13AL-07D80T7R□090-24 80 7.0 90.0 360.0 24.0 2.0 9.0 3.5 0.6 12.5
WMZ13AL-07D80T710R□080-24 10.0 80.0 330.0 24.0 2.0 9.0 3.5 0.6 12.5
WMZ13AL-08D80T3R□145-24 3.0 145.0 570.0 24.0 2.0 10.0 3.5 0.6 13.5
WMZ13AL-09D80T2R□185-24 2.0 185.0 720.0 24.0 2.0 11.0 3.5 0.6 14.5
24Vac/120℃
WMZ13AL-08D120T4R7□295-24 120 4.7 295.0 700.0 24.0 3.5 10.0 3.5 0.6 13.5
WMZ13AL-10D120T3R9□340-24 3.9 340.0 800.0 24.0 4.3 12.0 3.5 0.6 15.5
WMZ13AL-14D120T3R3□420-24 3.3 420.0 980.0 24.0 5.0 16.0 3.5 0.6 19.5
24Vac/140℃
WMZ13AL-05D140T6R□270-24 140 6.0 270.0 540.0 24.0 2.5 7.0 5.0 0.6 10.5
WMZ13AL-05D140T13R□180-24 13.0 180.0 360.0 24.0 1.7 7.0 5.0 0.6 10.5
WMZ13AL-07D140T3R□410-24 3.0 410.0 820.0 24.0 4.5 9.0 5.0 0.6 12.5
WMZ13AL-07D140T5R□320-24 5.0 320.0 640.0 24.0 3.5 9.0 5.0 0.6 12.5
WMZ13AL-08D140T1R9□540-24 1.9 540.0 1080.0 24.0 6.0 10.0 5.0 0.6 13.5
WMZ13AL-08D140T2R5□470-24 2.5 470.0 940.0 24.0 5.0 10.0 5.0 0.6 13.5
WMZ13AL-10D140T1R3□700-24 1.3 700.0 1400.0 24.0 8.0 12.0 5.0 0.6 15.5
WMZ13AL-10D140T1R7□610-24 1.7 610.0 1220.0 24.0 7.0 12.0 5.0 0.6 15.5
WMZ13AL-12D140T0R9□920-24 0.9 920.0 1840.0 24.0 11.0 14.0 5.0 0.6 17.5
WMZ13AL-12D140T1R1□830-24 1.1 830.0 1660.0 24.0 10.0 14.0 5.0 0.6 17.5
WMZ13AL-16D140T0R5□1390-24 0.5 1390.0 2780.0 24.0 16.0 17.5 5.0 0.6 21.5
WMZ13AL-16D140T0R7□1170-24 0.7 1170.0 2340.0 24.0 13.5 17.5 5.0 0.6 21.5
WMZ13AL-20D140T0R3□2050-24 0.3 2050.0 4100.0 24.0 23.0 22.0 5.0 0.6 25.5
WMZ13AL-20D140T0R4□1770-24 0.4 1770.0 3540.0 24.0 20.0 22.0 5.0 0.6 25.5
42Vac/80℃
WMZ13AL-06D80T15R□060-42 80 15.0 60.0 230.0 42.0 1.5 8.0 4.0 0.6 11.5
WMZ13AL-06D80T22R□045-42 22.0 45.0 220.0 42.0 1.1 8.0 4.0 0.6 11.5
WMZ13AL-06D80T33R□040-42 33.0 40.0 180.0 42.0 0.9 8.0 4.0 0.6 11.5
WMZ13AL-06D80T47R□035-42 47.0 35.0 150.0 42.0 0.7 8.0 4.0 0.6 11.5
WMZ13AL-06D80T56R□030-42 56.0 30.0 140.0 42.0 0.7 8.0 4.0 0.6 11.5
42Vac/160℃
WMZ13AL-03D160T51R□055-42 160 51.0 55.0 165.0 42.0 0.6 5.0 4.0 0.5 8.5
WMZ13AL-05D160T24R□095-42 24.0 95.0 285.0 42.0 1.0 7.0 4.0 0.6 10.5
WMZ13AL-08D160T9R1□175-42 9.1 175.0 525.0 42.0 3.0 10.0 4.0 0.6 13.5
WMZ13AL-09D160T5R1□290-42 5.1 290.0 870.0 42.0 4.5 11.0 4.0 0.6 14.5
WMZ13AL-11D160T3R6□360-42 3.6 360.0 1080.0 42.0 5.0 13.5 4.0 0.6 16.5
48Vac/120℃
WMZ13AL-04D120T42R□105-48 120 42.0 105.0 210.0 48.0 0.8 6.5 5.0 0.6 10.5
WMZ13AL-04D120T60R□090-48 60.0 90.0 180.0 48.0 0.6 6.5 5.0 0.6 10.5
WMZ13AL-04D120T90R□070-48 90.0 70.0 140.0 48.0 0.5 6.5 5.0 0.6 10.5
WMZ13AL-06D120T22R□155-48 22.0 155.0 310.0 48.0 1.3 8.0 5.0 0.6 11.5
WMZ13AL-06D120T32R□130-48 32.0 130.0 260.0 48.0 1.0 8.0 5.0 0.6 11.5
WMZ13AL-08D120T18R□195-48 18.0 195.0 390.0 48.0 1.6 10.0 5.0 0.6 13.5
WMZ13AL-10D120T12R□230-48 12.0 230.0 460.0 48.0 2.2 12.0 5.0 0.6 15.5
WMZ13AL-12D120T6R5□350-48 6.5 350.0 700.0 48.0 4.0 14.0 5.0 0.6 17.5
WMZ13AL-12D120T9R□285-48 9.0 285.0 570.0 48.0 2.9 14.0 5.0 0.6 17.5
WMZ13AL-13D120T4R3□425-48 4.3 425.0 850.0 48.0 6.3 15.0 5.0 0.6 18.5
WMZ13AL-16D120T2R6□650-48 2.6 605.0 1210.0 48.0 12.0 17.5 5.0 0.6 21.5
WMZ13AL-16D120T3R8□505-48 3.8 505.0 1010.0 48.0 7.3 17.5 5.0 0.6 21.5
WMZ13AL-20D120T1R6□870-48 1.6 870.0 1750.0 48.0 18.0 22.0 5.0 0.6 25.5
WMZ13AL-20D120T2R2□725-48 2.2 725.0 1450.0 48.0 14.0 22.0 5.0 0.6 25.5
48Vac/140℃
WMZ13AL-06D140T25R□130-48 140 25.0 130.0 260.0 48.0 1.2 7.0 5.0 0.6 10.5
WMZ13AL-06D140T50R□094-48 50.0 94.0 188.0 48.0 0.8 7.0 5.0 0.6 10.5
63Vac/120℃
WMZ13AL-04D120T51R□055-63 120 51.0 55.0 165.0 63.0 0.7 5.0 4.0 0.5 8.5
WMZ13AL-06D120T24R□090-63 24.0 90.0 270.0 63.0 1.0 7.0 4.0 0.6 10.5
WMZ13AL-08D120T9R1□160-63 9.1 160.0 480.0 63.0 3.0 10.0 4.0 0.6 13.5
WMZ13AL-09D120T5R1□280-63 5.1 280.0 850.0 63.0 4.5 11.0 4.0 0.6 14.5
WMZ13AL-11D120T3R6□320-63 3.6 320.0 960.0 63.0 5.0 13.5 4.0 0.6 16.5
WMZ13AL-14D120T2R4□460-63 2.4 460.0 1400.0 63.0 7.5 17.5 4.0 0.6 21.5
WMZ13AL-04D120T1R7□700-63 1.7 700.0 1400.0 63.0 10.0 22.0 5.0 0.6 25.5
63Vac/130℃
WMZ13AL-05D130T62R□085-63 130 62.0 85.0 130.0 63.0 0.7 6.5 5.0 0.6 10.5
WMZ13AL-06D130T20R□150-63 20.0 150.0 240.0 63.0 1.0 7.0 5.0 0.6 10.5
WMZ13AL-08D130T8R0□250-63 8.0 250.0 380.0 63.0 3.0 10.0 5.0 0.6 13.5
WMZ13AL-10D130T4R9□320-63 4.9 320.0 500.0 63.0 4.3 12.0 5.0 0.6 15.5
WMZ13AL-12D130T3R3□450-63 3.3 450.0 690.0 63.0 5.5 14.0 5.0 0.6 17.5
WMZ13AL-14D130T2R2□700-63 2.2 700.0 1100.0 63.0 8.0 17.5 5.0 0.6 21.5
WMZ13AL-20D130T1R2□1000-63 1.2 1000.0 1500.0 63.0 10.0 22.0 5.0 0.6 25.5
110Va/120℃
WMZ13AL-12D120T6R8□290-110 120 6.8 290.0 660.0 110.0 1.0 14.0 4.5 0.6 17.5
WMZ13AL-12D120T10R□220-110 10.0 220.0 500.0 110.0 1.0 14.0 4.5 0.6 17.5
WMZ13AL-14D120T4R7□390-110 4.7 390.0 900.0 110.0 2.0 17.5 5.0 0.6 21.5
110Vac/140℃
WMZ13AL-06D140T28R□130-110 140 28.0 130.0 260.0 110.0 0.6 7.0 5.0 0.6 10.5
WMZ13AL-06D140T40R□110-110 40.0 110.0 220.0 110.0 0.5 7.0 5.0 0.6 10.5
WMZ13AL-06D140T55R□093-110 55.0 93.0 186.0 110.0 0.5 7.0 5.0 0.6 10.5
WMZ13AL-06D140T121R□065-110 120.0 65.0 130.0 110.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-06D140T241R□047-110 240.0 47.0 94.0 110.0 0.2 7.0 5.0 0.6 10.5
WMZ13AL-06D140T12R□210-110 12.0 210.0 420.0 110.0 1.4 9.0 5.0 0.6 12.5
WMZ13AL-06D140T19R□170-110 19.0 170.0 340.0 110.0 1.0 9.0 5.0 0.6 12.5
WMZ13AL-08D140T8R0□270-110 8.0 270.0 540.0 110.0 2.2 10.0 5.0 0.6 13.5
WMZ13AL-08D140T9R4□250-110 9.4 250.0 500.0 110.0 2.0 10.0 5.0 0.6 13.5
WMZ13AL-10D140T5R3□360-110 5.3 360.0 720.0 110.0 3.5 12.0 5.0 0.6 15.5
WMZ13AL-10D140T6R7□320-110 6.7 320.0 640.0 110.0 3.0 12.0 5.0 0.6 15.5
WMZ13AL-12D140T3R8□450-110 3.8 450.0 900.0 110.0 5.0 14.0 5.0 0.6 17.5
WMZ13AL-12D140T4R6□410-110 4.6 410.0 820.0 110.0 4.5 14.0 5.0 0.6 17.5
WMZ13AL-14D140T2R1□710-110 2.1 710.0 1420.0 110.0 8.5 17.5 5.0 0.6 21.5
WMZ13AL-14D140T2R9□600-110 2.9 600.0 1200.0 110.0 7.2 17.5 5.0 0.6 21.5
WMZ13AL-20D140T1R3□1000-110 1.3 1000.0 2000.0 110.0 13.0 22.0 5.0 0.6 25.5
WMZ13AL-20D140T1R7□880-110 1.7 880.0 1760.0 110.0 11.0 22.0 5.0 0.6 25.5
220Vac/80℃
WMZ13AL-04D80T151R□015-220 80 150.0 15.0 60.0 220.0 0.3 5.0 5.0 0.5 8.5
WMZ13AL-06D80T68R□035-220 68.0 35.0 110.0 220.0 0.5 7.0 5.0 0.6 10.5
WMZ13AL-07D80T36R□045-220 36.0 45.0 180.0 220.0 0.7 9.0 5.0 0.6 12.5
WMZ13AL-08D80T22R□065-220 22.0 65.0 195.0 220.0 1.2 10.0 5.0 0.6 13.5
WMZ13AL-10D80T15R□090-220 15.0 90.0 270.0 220.0 1.5 11.0 5.0 0.6 14.5
WMZ13AL-10D80T18R□075-220 18.0 75.0 225.0 220.0 1.3 11.0 5.0 0.6 14.5
WMZ13AL-12D80T10R□120-220 10.0 120.0 360.0 220.0 2.3 13.5 5.0 0.6 16.5
WMZ13AL-14D80T5R6□180-220 5.6 180.0 540.0 220.0 4.5 17.5 5.0 0.6 21.5
WMZ13AL-20D80T3R9□240-220 3.9 240.0 720.0 220.0 7.0 22.0 5.0 0.6 25.5
WMZ13AL-24D80T2R7□350-220 2.7 350.0 1050.0 220.0 9.5 26.0 5.0 0.8 29.5
220Vac/120℃
WMZ13AL-04D120T151R□030-220 120 150.0 30.0 90.0 220.0 0.3 5.0 5.0 0.5 8.5
WMZ13AL-04D120T302R□009-220 3000.0 9.0 18.0 220.0 0.2 5.0 5.0 0.5 8.5
WMZ13AL-05D120T381R□035-220 380.0 35.0 70.0 220.0 0.3 6.5 5.0 0.6 10.5
WMZ13AL-05D120T561R□030-220 560.0 30.0 60.0 220.0 0.2 6.5 5.0 0.6 10.5
WMZ13AL-05D120T851R□025-220 850.0 25.0 50.0 220.0 0.2 6.5 5.0 0.6 10.5
WMZ13AL-05D120T122R□020-220 1200.0 20.0 40.0 220.0 0.1 6.5 5.0 0.6 10.5
WMZ13AL-05D120T192R□015-220 1900.0 15.0 30.0 220.0 0.1 6.5 5.0 0.6 10.5
WMZ13AL-06D120T75R□050-220 75.0 50.0 150.0 220.0 0.5 7.0 5.0 0.6 10.5
WMZ13AL-06D120T181R□029-220 180.0 29.0 70.0 220.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-07D120T121R□035-220 120.0 35.0 100.0 220.0 0.4 8.0 5.0 0.6 11.5
WMZ13AL-07D120T201R□050-220 200.0 50.0 100.0 220.0 0.4 8.0 5.0 0.6 11.5
WMZ13AL-07D120T281R□045-220 280.0 45.0 90.0 220.0 0.3 8.0 5.0 0.6 11.5
WMZ13AL-08D120T56R□060-220 56.0 60.0 200.0 220.0 0.8 9.0 5.0 0.6 12.5
WMZ13AL-08D120T82R□060-220 82.0 60.0 160.0 220.0 0.5 9.0 5.0 0.6 12.5
WMZ13AL-08D120T24R□100-220 24.0 100.0 300.0 220.0 1.1 10.0 5.0 0.6 13.5
WMZ13AL-08D120T36R□085-220 36.0 85.0 250.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-08D120T39R□075-220 39.0 75.0 240.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-08D120T50R□105-220 50.0 105.0 210.0 220.0 0.7 10.0 5.0 0.6 13.5
WMZ13AL-08D120T51R□065-220 51.0 65.0 195.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-08D120T62R□055-220 62.0 55.0 165.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-08D120T72R□090-220 72.0 90.0 180.0 220.0 0.6 10.0 5.0 0.6 13.5
WMZ13AL-10D120T16R□150-220 16.0 150.0 450.0 220.0 1.5 11.0 5.0 0.6 14.5
WMZ13AL-10D120T15R□140-220 15.0 140.0 280.0 220.0 1.5 12.0 5.0 0.6 15.5
WMZ13AL-10D120T26R□155-220 26.0 155.0 310.0 220.0 1.1 12.0 5.0 0.6 15.5
WMZ13AL-12D120T39R□100-220 39.0 100.0 250.0 220.0 1.2 12.0 5.0 0.6 15.5
WMZ13AL-12D120T11R□200-220 11.0 200.0 600.0 220.0 2.2 13.5 5.0 0.6 16.5
WMZ13AL-12D120T10R□230-220 10.0 230.0 650.0 220.0 2.3 14.0 5.0 0.6 17.5
WMZ13AL-12D120T14R□230-220 14.0 230.0 460.0 220.0 1.7 14.0 5.0 0.6 17.5
WMZ13AL-12D120T20R□195-220 20.0 195.0 390.0 220.0 1.3 14.0 5.0 0.6 17.5
WMZ13AL-14D120T27R□120-220 27.0 120.0 350.0 220.0 1.5 14.0 5.0 0.6 17.5
WMZ13AL-14D120T18R□180-220 18.0 180.0 450.0 220.0 1.8 16.0 5.0 0.6 19.5
WMZ13AL-14D120T6R2□320-220 6.2 320.0 960.0 220.0 4.0 17.5 5.0 0.6 21.5
WMZ13AL-14D120T8R0□350-220 8.0 350.0 700.0 220.0 2.5 17.5 5.0 0.6 21.5
WMZ13AL-22D120T3R6□460-220 3.6 460.0 1380.0 220.0 7.0 22.0 5.0 0.6 25.5
WMZ13AL-22D120T5R0□-505-220 5.0 505.0 1010.0 220.0 3.6 22.0 5.0 0.6 25.5
WMZ13AL-22D120T7R0□-425-220 7.0 425.0 850.0 220.0 3.0 22.0 5.0 0.6 25.5
WMZ13AL-24D120T2R4□-660-220 2.4 660.0 1980.0 220.0 10.5 26.0 5.0 0.8 29.5
220Vac/130℃
WMZ13AL-05D130T161R□055-220 130 160.0 55.0 90.0 220.0 0.2 6.5 5.0 0.6 10.5
WMZ13AL-06D130T50R□100-200 50.0 100.0 150.0 220.0 0.4 7.0 5.0 0.6 10.5
WMZ13AL-08D130T25R□140-220 25.0 140.0 230.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-10D130T13R□200-220 13.0 200.0 320.0 220.0 1.5 12.0 5.0 0.6 15.5
WMZ13AL-12D130T9R0□330-220 9.0 330.0 500.0 220.0 2.2 14.0 5.0 0.6 17.5
WMZ13AL-14D130T5R0□450-220 5.0 450.0 680.0 220.0 4.1 17.5 5.0 0.6 21.5
WMZ13AL-20D130T3R5□650-220 3.5 650.0 980.0 220.0 7.0 22.0 5.0 0.6 25.5
220Vac/140℃
WMZ13AL-04D130T181R□-030-220 140 180.0 30.0 90.0 220.0 0.3 5.0 5.0 0.5 8.5
WMZ13AL-06D130T56R□-095-220 56.0 95.0 190.0 220.0 0.6 7.0 5.0 0.6 10.5
WMZ13AL-06D130T75R□-060-220 75.0 60.0 180.0 220.0 0.4 7.0 5.0 0.6 10.5
WMZ13AL-06D130T85R□-076-220 85.0 76.0 152.0 220.0 0.6 7.0 5.0 0.6 10.5
WMZ13AL-06D130T121R□-063-220 120.0 63.0 126.0 220.0 0.5 7.0 5.0 0.6 10.5
WMZ13AL-06D130T261R□-039-220 260.0 39.0 78.0 220.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-06D130T501R□-028-220 500.0 28.0 56.0 220.0 0.2 7.0 5.0 0.6 10.5
WMZ13AL-06D130T102R□-019-220 1200.0 19.0 38.0 220.0 0.1 7.0 5.0 0.6 10.5
WMZ13AL-06D130T192R□-015-220 1900.0 15.0 30.0 220.0 0.1 7.0 5.0 0.6 10.5
WMZ13AL-06D130T302R□-011-220 3000.0 11.0 22.0 220.0 0.1 7.0 5.0 0.6 10.5
WMZ13AL-07D130T29R□-140-220 29.0 140.0 280.0 220.0 0.8 9.0 5.0 0.6 12.5
WMZ13AL-08D130T48R□-110-220 48.0 110.0 220.0 220.0 0.7 9.0 5.0 0.6 12.5
WMZ13AL-08D130T18R□-190-220 18.0 190.0 380.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-08D130T22R□-170-220 22.0 170.0 340.0 220.0 0.9 10.0 5.0 0.6 13.5
WMZ13AL-08D130T24R□-110-220 24.0 110.0 330.0 220.0 1.0 10.0 5.0 0.6 13.5
WMZ13AL-08D130T16R□-150-220 16.0 150.0 450.0 220.0 1.5 11.0 5.0 0.6 14.5
WMZ13AL-10D130T12R□-250-220 12.0 250.0 500.0 220.0 1.5 12.0 5.0 0.6 15.5
WMZ13AL-10D130T17R□-210-220 17.0 210.0 420.0 220.0 1.3 12.0 5.0 0.6 15.5
WMZ13AL-10D130T9R1□-220-220 9.1 220.0 660.0 220.0 2.5 13.5 5.0 0.6 16.5
WMZ13AL-12D130T8R4□-320-220 8.4 320.0 640.0 220.0 2.2 14.0 5.0 0.6 17.5
WMZ13AL-12D130T11R□-280-220 11.0 280.0 560.0 220.0 1.8 14.0 5.0 0.6 17.5
WMZ13AL-14D130T4R4□-490-220 4.4 490.0 980.0 220.0 3.5 17.5 5.0 0.6 21.5
WMZ13AL-14D130T5R1□-350-220 5.1 350.0 1050.0 220.0 4.5 17.5 5.0 0.6 21.5
WMZ13AL-14D130T6R6□-400-220 6.6 400.0 800.0 220.0 3.0 17.5 5.0 0.6 21.5
WMZ13AL-20D130T2R8□-700-220 2.8 700.0 1400.0 220.0 5.5 22.0 5.0 0.6 25.5
WMZ13AL-20D130T3R6□-470-220 3.6 470.0 1400.0 220.0 5.0 22.0 5.0 0.6 25.5
WMZ13AL-20D130T4R0□-590-220 4.0 590.0 1180.0 220.0 4.5 22.0 5.0 0.6 25.5
250Vac/100℃
WMZ13AL-07D100T22□-100-250 100 22.0 100.0 260.0 250.0 0.5 9.0 6.0 0.6 12.5
270Vac/120℃
WMZ13AL-08D120T39R□075-270 120 39.0 75.0 240.0 270.0 1.2 10.0 5.0 0.6 13.5
WMZ13AL-10D120T39R□100-270 39.0 100.0 250.0 270.0 1.2 12.0 5.0 0.6 15.5
WMZ13AL-12D120T27R□120-270 27.0 120.0 350.0 270.0 1.5 14.0 5.0 0.6 17.5
WMZ13AL-14D120T50R□320-270 50.0 320.0 160.0 270.0 4.0 18.0 7.0 0.6 21.5
300Vac/120℃
WMZ13AL-10D120T82R□080-300 120 82.0 80.0 250.0 300.0 0.5 12.0 5.5 0.6 15.5
WMZ13AL-10D120T151R□060-400 150.0 60.0 150.0 300.0 0.3 12.0 5.5 0.6 15.5
WMZ13AL-10D120T351R□035-300 350.0 35.0 100.0 300.0 0.3 12.0 5.5 0.6 15.5
380Vac/120℃
WMZ13AL-05D120T601R□021-380 120 600.0 21.0 39.0 380.0 0.2 7.0 5.0 0.6 10.5
400Vac/120℃
WMZ13AL-05D120T251R□032-400 120 250.0 32.0 65.0 400.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-05D120T381R□030-400 380.0 30.0 56.0 400.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-05D120T561R□022-400 560.0 22.0 44.0 400.0 0.3 7.0 5.0 0.6 10.5
500Vac/120℃
WMZ13AL-05D120T122R□015-500 120 1200.0 15.0 30.0 500.0 0.1 7.0 5.0 0.6 10.5
WMZ13AL-05D120T152R□012-500 1500.0 12.0 24.0 500.0 0.1 7.0 5.0 0.6 10.5
600Vac/90℃
WMZ13AL-05D90T801R□018-600 90 800.0 18.0 36.0 600.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-05D90T102R□015-600 1000.0 15.0 30.0 600.0 0.3 7.0 5.0 0.6 10.5
WMZ13AL-05D90T132R□013-600 1300.0 13.0 26.0 600.0 0.3 7.0 5.0 0.6 10.5
600Vac/100℃
WMZ13AL-05D100T152R□014-600 100 1500.0 14.0 28.0 600.0 0.1 7.0 5.0 0.6 10.5
WMZ13AL-05D100T272R□010-600 2700.0 10.0 20.0 600.0 0.2 7.0 5.0 0.6 10.5
无包封
380Vac/120℃
WMZ13AL-07D120T131R□045-380-W 120 130.0 45.0 90.0 380.0 1.0 7.5 7.0 0.6 12.5
WMZ13AL-08D120T70R□064-380-W 70.0 64.0 127.0 380.0 1.4 8.5 7.0 0.6 13.5
WMZ13AL-08D120T121R□049-380-W 120.0 49.0 100.0 380.0 1.4 8.5 7.0 0.6 13.5
WMZ13AL-08D120T151R□043-380-W 150.0 43.0 86.0 380.0 1.4 8.5 7.0 0.6 13.5
WMZ13AL-12D120T25R□123-380-W 25.0 123.0 245.0 380.0 2.0 12.5 7.0 0.6 16.5
WMZ13AL-12D120T50R□087-380-W 50.0 87.0 173.0 380.0 2.0 12.5 7.0 0.6 16.5
WMZ13AL-12D120T80R□069-380-W 80.0 69.0 137.0 380.0 2.0 12.5 7.0 0.6 16.5
WMZ13AL-12D120T121R□056-380-W 120.0 56.0 112.0 380.0 2.0 12.5 7.0 0.6 16.5
WMZ13AL-12D120T151R□050-380-W 150.0 50.0 100.0 380.0 2.0 12.5 7.0 0.6 16.5
500Vac/120℃
WMZ13AL-08D120T501R□024-500-W 120 500.0 24.0 48.0 500.0 1.0 8.5 7.0 0.6 13.5
WMZ13AL-08D120T112R□016-500-W 1100.0 16.0 32.0 500.0 1.0 8.5 7.0 0.6 13.5
WMZ13AL-12D120T501R□028-500-W 500.0 28.0 55.0 500.0 1.4 12.5 7.0 0.6 16.5
600Vac/110℃
WMZ13AL-12D120T752R□008-600W 110 7500.0 8.0 17.0 1000.0 0.5 12.5 7.0 0.6 16.5

  Copyright ◎ 2000 南京华巨电子有限公司 All Right Reserved
地址:南京江宁区天元中路126号  电话:025-52153215 52153380 52157721 传真:025-52157065
邮箱 :
网址:www.sinochip.net 技术支持:华巨电子
