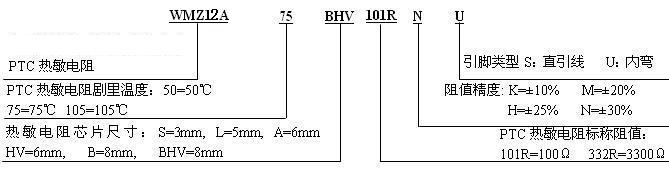

5.外型结构和尺寸:

6.产品标志说明:

主要技术参数

序号	型号	额定零功率电阻值（Ω）	耐电压( VAC)	最大可重复通断电流（mA）	耐流能力（mA）	开关温度（℃）	外形尺寸（mm）
							Dmax	Tmax	d
01	WMZ11A-50S68RNU	68±30％	360	200	300	50±7	4	4.5	0.5
02	WMZ11A-50S101NU	100±30％	400
03	WMZ11A-50S151NU	150±30％	400
04	WMZ11A-50S221NU	220±30％	500
05	WMZ11A-50S331NU	330±30％	600
06	WMZ11A-50S471NU	470±30％	600
07	WMZ11A-50S681NU	680±30％	600
08	WMZ11A-50S102NU	1000±30％	600
09	WMZ11A-50S152NU	1500±30％	600	140	210
10	WMZ11A-50S222NU	2200±30％	600	90	135
11	WMZ11A-50S332NU	3300±30％	600	60	90
12	WMZ11A-50S472NU	4700±30％	600	40	60
13	WMZ11A-75S68RNU	68±30％	360	200	300	75±7
14	WMZ11A-75S101NU	100±30％	400
15	WMZ11A-75S151NU	150±30％	400
16	WMZ11A-75S221NU	220±30％	500
17	WMZ11A-75S331NU	330±30％	500
18	WMZ11A-75S471NU	470±30％	500
19	WMZ11A-75S681NU	680±30％	600
20	WMZ11A-75S102NU	1000±30％	600
21	WMZ11A-75S152NU	1500±30％	600	140	210
22	WMZ11A-75S222NU	2200±30％	600	90	135
23	WMZ11A-75S332NU	3300±30％	600	60	90
24	WMZ11A-75S472NU	4700±30％	600	40	60
25	WMZ11A-105S68RNU	68±30％	360	180	270	105±7
26	WMZ11A-105S101NU	100±30％	400
27	WMZ11A-105S151NU	150±30％	400
28	WMZ11A-105S221NU	220±30％	400
29	WMZ11A-105S331NU	330±30％	500
30	WMZ11A-105S471NU	470±30％	500
31	WMZ11A-105S681NU	680±30％	600
32	WMZ11A-105S102NU	1000±30％	600
33	WMZ11A-105S152NU	1500±30％	600	140	210
34	WMZ11A-105S222NU	2200±30％	600	90	135
35	WMZ11A-120S68RNU	68±30％	360	180	270	120±7
36	WMZ11A-120S101NU	100±30％	400
37	WMZ11A-120S151NU	150±30％	400
38	WMZ11A-120S221NU	220±30％	400
39	WMZ11A-120S331NU	330±30％	500
40	WMZ11A-120S471NU	470±30％	500
41	WMZ11A-120S681NU	680±30％	600
42	WMZ11A-120S102NU	1000±30％	600

序号	型号	额定零功率 电阻值（Ω）	耐电压(VAC)	最大可重复通断电流（mA）	耐流能力（mA）	开关温度（℃）	外形尺寸（mm）
							Dmax	Tmax	d
43	WMZ11A-85L68RNU	68±30％	360	300	450	85±7	5.5	4.5	0.6
44	WMZ11A-85L101NU	100±30％	400
45	WMZ11A-85L151NU	150±30％	400
46	WMZ11A-85L221NU	220±30％	400
47	WMZ11A-85L331NU	330±30％	500
48	WMZ11A-85L471NU	470±30％	600
49	WMZ11A-85L681NU	680±30％	600
50	WMZ11A-85L102NU	1000±30％	600	200	300
51	WMZ11A-85L152NU	1500±30％	600	140	210
52	WMZ11A-85L222NU	2200±30％	600	90	135
53	WMZ11A-105L68RNU	68±30％	360	300	450	105±7
54	WMZ11A-105L101NU	100±30％	400
55	WMZ11A-105L151NU	150±30％	400
56	WMZ11A-105L221NU	220±30％	400
57	WMZ11A-105L331NU	330±30％	500
58	WMZ11A-105L471NU	470±30％	600
59	WMZ11A-105L681NU	680±30％	600
60	WMZ11A-120L101NU	100±30％	400	300	450	120±7
61	WMZ11A-120L151NU	150±30％	400
62	WMZ11A-120L221NU	220±30％	400
63	WMZ11A-120L331NU	330±30％	500
64	WMZ11A-120L471NU	470±30％	600
65	WMZ11A-120L681NU	680±30％	600
66	WMZ11A-50A68RNU	68±30％	420	400	600	50±7	6.5	5.0	0.6
67	WMZ11A-50A101NU	100±30％	420
68	WMZ11A-50A151NU	150±30％	500
69	WMZ11A-50A221NU	220±30％	500
70	WMZ11A-50A331NU	330±30％	600
71	WMZ11A-50A471NU	470±30％	600
72	WMZ11A-50A681NU	680±30％	600	300	450
73	WMZ11A-50A102NU	1000±30％	600	200	300
74	WMZ11A-50A152NU	1500±30％	600	140	210
75	WMZ11A-50A222NU	2200±30％	600	90	135
76	WMZ11A-50A332NU	3300±30％	600	60	90
77	WMZ11A-50HV68RNU	68±30％	600	400	600		6.5	5.5	0.6
78	WMZ11A-50HV101NU	100±30％	600
79	WMZ11A-50HV151NU	150±30％	750
80	WMZ11A-50HV221NU	220±30％	750
81	WMZ11A-50HV331NU	330±30％	800
82	WMZ11A-50HV471NU	470±30％	900
83	WMZ11A-50HV681NU	680±30％	900	300	450
84	WMZ11A-50HV102NU	1000±30％	900	200	300
85	WMZ11A-50HV152NU	1500±30％	900	120	210



序号	型号	额定零功率 电阻值（Ω）	耐电压(VAC)	最大可重复通断电流（mA）	耐流能力（mA）	开关温度（℃）	外形尺寸（mm）
							Dmax	Tmax	d
86	WMZ11A-75A68RNU	68±30％	420	400	600	75±7	6.5	5.0	0.6
87	WMZ11A-75A101NU	100±30％	420
88	WMZ11A-75A151NU	150±30％	500
89	WMZ11A-75A221NU	220±30％	500
90	WMZ11A-75A331NU	330±30％	600
91	WMZ11A-75A471NU	470±30％	600
92	WMZ11A-75A681NU	680±30％	700	300	450
93	WMZ11A-75A102NU	1000±30％	700	200	300
94	WMZ11A-75A152NU	1500±30％	800	140	210
95	WMZ11A-75A222NU	2200±30％	800	90	135
96	WMZ11A-75A332NU	3300±30％	800	60	90
97	WMZ11A-75HV68RNU	68±30％	600	400	600	75±7	6.5	5.5	0.6
98	WMZ11A-75HV101NU	100±30％	600
99	WMZ11A-75HV151NU	150±30％	750
100	WMZ11A-75HV221NU	220±30％	750
101	WMZ11A-75HV331NU	330±30％	800
102	WMZ11A-75HV471NU	470±30％	900
103	WMZ11A-75HV681NU	680±30％	900	300	450
104	WMZ11A-75HV102NU	1000±30％	900	200	300
105	WMZ11A-75HV152NU	1500±30％	1000	140	210
106	WMZ11A-75HV222NU	2200±30％	1000	90	145
107	WMZ11A-75HV332NU	3300±30％	1000	60	90
108	WMZ11A-105A68RNU	68±30％	400	400	600	105±7	6.5	5.0	0.6
109	WMZ11A-105A101NU	100±30％	400
110	WMZ11A-105A151NU	150±30％	400
111	WMZ11A-105A221NU	220±30％	500
112	WMZ11A-105A331NU	330±30％	600
113	WMZ11A-105A471NU	470±30％	600
114	WMZ11A-105A681NU	680±30％	700	300	450
115	WMZ11A-105A102NU	1000±30％	700	200	300
116	WMZ11A-120A68RNU	68±30％	400	400	600	120±7	6.5	5.0	0.6
117	WMZ11A-120A101NU	100±30％	400
118	WMZ11A-120A151NU	150±30％	400
119	WMZ11A-120A221NU	220±30％	500
120	WMZ11A-120A331NU	330±30％	500
121	WMZ11A-120A471NU	470±30％	600
122	WMZ11A-50B68RNU	68±30％	400	800	1200	50±7	8.5	5.0	0.6
123	WMZ11A-50B101NU	100±30％	500
124	WMZ11A-50B151NU	150±30％	500
125	WMZ11A-50B221NU	220±30％	600
126	WMZ11A-50B331NU	330±30％	600	620	930
127	WMZ11A-50B471NU	470±30％	600	430	645
128	WMZ11A-50B681NU	680±30％	600	300	450
129	WMZ11A-50B102NU	1000±30％	600	200	300
130	WMZ11A-75B68RNU	68±30％	400	800	1200	75±7	8.5	5.0	0.6
131	WMZ11A-75B101NU	100±30％	500
132	WMZ11A-75B151NU	150±30％	500
133	WMZ11A-75B221NU	220±30％	600
134	WMZ11A-75B331NU	330±30％	600	620	930
135	WMZ11A-75B471NU	470±30％	600	430	645
136	WMZ11A-85B68RNU	68±30％	400	800	1200	85±7	8.5	5.0	0.6
137	WMZ11A-85B101NU	100±30％	500
138	WMZ11A-85B151NU	150±30％	500
139	WMZ11A-85B221NU	220±30％	600
140	WMZ11A-85B331NU	330±30％	600	620	930
141	WMZ11A-85B471NU	470±30％	600	430	645
142	WMZ11A-105B68RNU	68±30％	400	800	1200	105±7	8.5	5.0	0.6
143	WMZ11A-105B101NU	100±30％	500
144	WMZ11A-105B151NU	150±30％	500
145	WMZ11A-105B221NU	220±30％	600
146	WMZ11A-105B331NU	330±30％	600	620	930
147	WMZ11A-105B471NU	470±30％	600	430	645
148	WMZ11A-75BHV68RNU	68±30％	600	800	1200	75±7	8.5	5.5	0.6
149	WMZ11A-75BHV101NU	100±30％	600
150	WMZ11A-75BHV151NU	150±30％	750
151	WMZ11A-75BHV221NU	220±30％	900
152	WMZ11A-75BHV331NU	330±30％	1000	620	930
153	WMZ11A-75BHV471NU	470±30％	1000	430	645
154	WMZ11A-75BHV681NU	680±30％	1000	300	450
155	WMZ11A-75BHV102NU	1000±30％	1000	200	300
156	WMZ11A-75BHV152NU	1500±30％	1000	240	210
157	WMZ11A-75BHV222NU	2200±30％	1000	90	145

注：当预热时间偏短时,可选阻值较低、居里点温度较高或体积较大的PTC热敏电阻,反之亦然。另,我公司还可按用户的特殊要求供货。
