最近接触了BMS+高压配电箱和整车功能的匹配测试，尽管出现了这样那样的问题，但对我而言也算有所收获，结合网络资源，稍作整理。

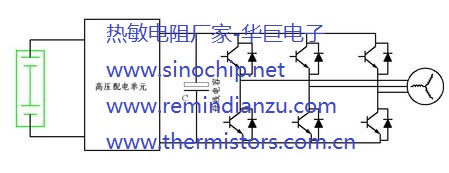

主回路拓扑 此次高压系统所带的负载主要有电机控制器、电动附件等，特别是电机控制器带有较大的母线电容C，冷态启动时，电容C无电荷或所带残余电荷较小。 若没有预充电回路时，主正、主负继电器直接与电容C闭合，BP_V为高压，300多伏，C两端电压接近0V,相当于瞬间短路，负载电阻仅仅是导线及继电器触点电阻；根据欧姆定律，BP_I=BP_V/R , R值此时为mΩ级别，BP_I 将远远超过继电器容量，假设导线及继电器触点电阻为30mΩ，BP_V=300V，则此时BP_I=300/0.03=10000A ,主正、主负继电器很容易就损坏。

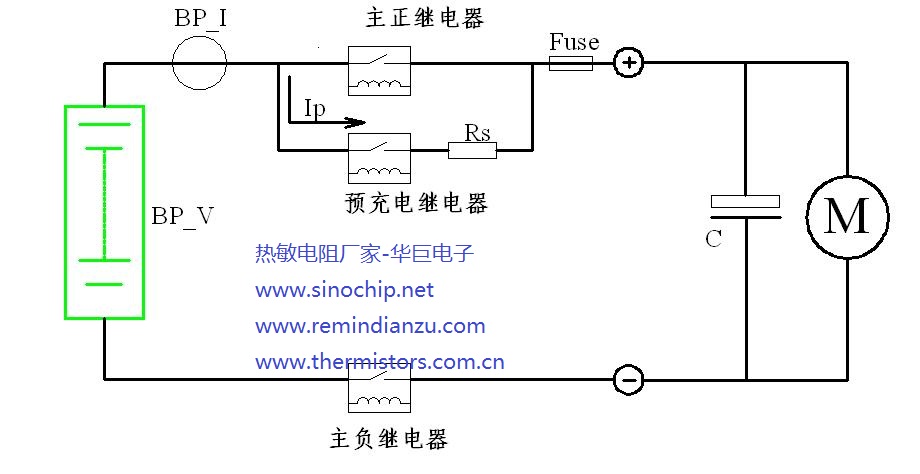

预充电回路 加入预充电继电器及预充电电阻Rs（Rs取100Ω），上电时，BMS首先控制主负继电器、预充电继电器闭合，主正继电器断开，接通瞬间，经Rs流入电容C的电流Ip=300/100=3A，在预充继电器、主负继电器的容量范围内，回路安全； 待电容C充电达到目标要求后，此时电容两端已存在较高电压（接近蓄电池电池电压）, 继电器两端压差也就较低，此时结合就没有大电流冲击，BMS控制预充电继电器断开，结合主正继电器，高压接入。 有些电机控制器厂家在控制器内部设有缓冲单元，即缓冲电阻，这和上述的预充继电器回路是一个原理，即上电瞬间先接入一缓冲（预充）电阻，待负载电容充电到目标需求时，断开缓冲（预充）电阻，接通主正回路。 预充电时间 预充电时间是一个比较重要的参数，在测试中由于厂家提供的预充电电阻阻值较小（小于100Ω），采集数据显示没有明显的预充过程，上电瞬间，对高压配电单元内的继电器有一定的冲击。 我司提供预充电电阻及充电时间计算软件供客户选用欢迎索取QQ:67277123 预充时间计算 设，V0为电容上的初始电压值 V1为电容最终可充到或放到的电压值； Vt 为t时刻电容上的电压值。 则预充时间： t = RC*Ln[(V1-V0)/(V1-Vt)] 例：初始值为0的电容通过Rs充电，充电终止值为Vcc,则充到2/3 Vcc需要多少时间？ t = RC*Ln[(V1-V0)/(V1-Vt)] =RC*Ln[(Vcc-0)/(Vcc-2/3Vcc)] =RC*Ln3
华巨科技(SINOCHIP) PTC热敏电阻在一些应用中作为主动浪涌电流限制的ICL元件有着一些关键优势：
– 其ICL功能不会受到极端工作温度的影响。 – 一旦负载关闭便可以实现有效的浪涌电流限制，冷却已经在正常工作时进行。 – 对由电路故障引发的电流过载有着自保护功能。
得益于华巨科技(SINOCHIP) ICL广泛的产品组合，您可在苛刻的温度条件下，实现对电源高浪涌电流和短路的可靠保护。 储能电容的充电控制电路 自我防护式充电电阻器以PTC（正温度系数）陶瓷为基础，用于平滑电源中的电容器。当发生短路时，它们会将电流限定在安全水平。 普通电阻在电容充电时常用来限制电流。不过，这常有技术风险。举例来说，当短接电容器时，如果电容器短路或者继电器失灵，电阻器将持续暴露在大功率电平下。这可能导致电阻器或者整个系统遭到破坏。华巨电子采用基于PTC陶瓷的新式MZFLY系列充电电阻器，现已研发出一种专业解决方案：在自我防护的同时，还实现了相对紧凑的尺寸。
1.主要技术参数 型号 | 零功率电阻R25 | 最大电压 | 热容量 | 最大不作动能量 | 工作温度 | （Ω） | Vmax | Cth(J/K) | ENon(J) | （℃） | | (Vac) | Vdc | 25℃ | 40℃ | 60℃ | 工频电压260Vac | MZFLY-07D120T70RH-260 | 70 | 260 | 370 | 0.15 | 14 | 12 | 9 | -55～+85 | MZFLY-07D120T80RH-260 | 80 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T101RH-260 | 100 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T121RH-260 | 120 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T151RH-260 | 150 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T201RH-260 | 200 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T251RH-260 | 250 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T401RH-260 | 400 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T501RH-260 | 500 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-07D120T102RH-260 | 1000 | 260 | 370 | 0.15 | 14 | 12 | 9 | MZFLY-08D120T70RH-260 | 70 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T80RH-260 | 80 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T101RH-260 | 100 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T121RH-260 | 120 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T151RH-260 | 150 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T201RH-260 | 200 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T251RH-260 | 250 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T401RH-260 | 400 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T501RH-260 | 500 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-08D120T102RH-260 | 1000 | 260 | 370 | 0.3 | 28 | 24 | 18 | MZFLY-09D120T70RH-260 | 70 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D120T101RH-260 | 100 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D120T121RH-260 | 120 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D120T151RH-260 | 150 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D120T201RH-260 | 200 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D251T251RH-260 | 250 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D501T501RH-260 | 500 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-09D120T102RH-260 | 1000 | 260 | 370 | 0.4 | 38 | 32 | 24 | MZFLY-11D120T10RH-260 | 10 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T15RH-260 | 15 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T20RH-260 | 20 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T30RH-260 | 30 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T50RH-260 | 50 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T70RH-260 | 70 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T101RH-260 | 100 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T151RH-260 | 150 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T201RH-260 | 200 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T251RH-260 | 250 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T401RH-260 | 400 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T501RH-260 | 500 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T801RH-260 | 800 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-11D120T102RH-260 | 1000 | 260 | 370 | 0.6 | 57 | 48 | 36 | MZFLY-14D120T6R0H-260 | 6 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T10RH-260 | 10 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T15RH-260 | 15 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T18RH-260 | 18 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T25RH-260 | 25 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T30RH-260 | 30 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T45RH-260 | 45 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T50RH-260 | 50 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T70RH-260 | 70 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T101RH-260 | 100 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T151RH-260 | 150 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T201RH-260 | 200 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T251RH-260 | 250 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T401RH-260 | 400 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T501RH-260 | 500 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T801RH-260 | 800 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-14D120T102RH-260 | 1000 | 260 | 370 | 1.0 | 95 | 80 | 60 | MZFLY-18D120T6R0H-260 | 6 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T10RH-260 | 10 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T15RH-260 | 15 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T18RH-260 | 18 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T25RH-260 | 25 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T30RH-260 | 30 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T45RH-260 | 45 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T50RH-260 | 50 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T70RH-260 | 70 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T101RH-260 | 100 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T151RH-260 | 150 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T201RH-260 | 200 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T251RH-260 | 250 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T401RH-260 | 400 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T501RH-260 | 500 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T801RH-260 | 800 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-18D120T102RH-260 | 1000 | 260 | 370 | 1.5 | 143 | 120 | 90 | MZFLY-20D120T6R0H-260 | 6 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T10RH-260 | 10 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T15RH-260 | 15 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T18RH-260 | 18 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T25RH-260 | 25 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T30RH-260 | 30 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T45RH-260 | 45 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T50RH-260 | 50 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T70RH-260 | 70 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T101RH-260 | 100 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T151RH-260 | 150 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T201RH-260 | 200 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T251RH-260 | 250 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T401RH-260 | 400 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T501RH-260 | 500 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T801RH-260 | 800 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-20D120T102RH-260 | 1000 | 260 | 370 | 1.9 | 180 | 152 | 114 | MZFLY-22D120T3R3H-260 | 3.3 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T4R7H-260 | 4.7 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T6R0H-260 | 6 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T10RH-260 | 10 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T15RH-260 | 15 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T18RH-260 | 18 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T25RH-260 | 25 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T30RH-260 | 30 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T45RH-260 | 45 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T50RH-260 | 50 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T70RH-260 | 70 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T101RH-260 | 100 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T151RH-260 | 150 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T201RH-260 | 200 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T251RH-260 | 250 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T401RH-260 | 400 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T501RH-260 | 500 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T801RH-260 | 800 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-22D120T102RH-260 | 1000 | 260 | 370 | 2.4 | 228 | 192 | 144 | MZFLY-27D120T3R3H-260 | 3.3 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T4R7H-260 | 4.7 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T6R0H-260 | 6 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T10RH-260 | 10 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T15RH-260 | 15 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T18RH-260 | 18 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T25RH-260 | 25 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T30RH-260 | 30 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T45RH-260 | 45 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T50RH-260 | 50 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T70RH-260 | 70 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T101RH-260 | 100 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T151RH-260 | 150 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T201RH-260 | 200 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T251RH-260 | 250 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T401RH-260 | 400 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T501RH-260 | 500 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T801RH-260 | 800 | 260 | 370 | 3.75 | 356 | 300 | 225 | MZFLY-27D120T102RH-260 | 1000 | 260 | 370 | 3.75 | 356 | 300 | 225 | 工频电压280Vac | MZFLY-14D115T25RH-280 | 25 | 280 | 400 | 1.1 | 100 | 82 | 60 | MZFLY-14D115T50RH-280 | 50 | 280 | 400 | 1.1 | 100 | 82 | 60 | MZFLY-14D115T80RH-280 | 80 | 280 | 400 | 1.1 | 100 | 82 | 60 | MZFLY-18D130T22RH-280 | 22 | 280 | 400 | 1.6 | 168 | 152 | 112 | MZFLY-18D130T33RH-280 | 33 | 280 | 400 | 1.6 | 168 | 152 | 112 | MZFLY-20D130T22RH-280 | 22 | 280 | 400 | 2.1 | 220 | 200 | 147 | MZFLY-20D130T33RH-280 | 33 | 280 | 400 | 2.1 | 220 | 200 | 147 | 工频电压440Vac | MZFLY-09D120T70RH-440 | 70 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-09D120T101RH-440 | 100 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-09D120T121RH-440 | 120 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-09D120T151RH-440 | 150 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-09D120T201RH-440 | 200 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-09D251T251RH-440 | 250 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-09D501T501RH-440 | 500 | 440 | 620 | 0.5 | 47.5 | 50 | 30 | MZFLY-09D120T102RH-440 | 1000 | 440 | 620 | 0.5 | 47.5 | 40 | 30 | MZFLY-11D120T50RH-440 | 50 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T70RH-440 | 70 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T101RH-440 | 100 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T151RH-440 | 150 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T201RH-440 | 200 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T251RH-440 | 250 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T401RH-440 | 400 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T501RH-440 | 500 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T801RH-440 | 800 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-11D120T102RH-440 | 1000 | 440 | 620 | 0.8 | 76 | 64 | 48 | MZFLY-14D115T121RH-440 | 120 | 440 | 620 | 1.4 | 126 | 105 | 77 | MZFLY-14D115T151RH-440 | 150 | 440 | 620 | 1.4 | 126 | 105 | 77 | MZFLY-14D120T30RH-440 | 30 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T45RH-440 | 45 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T50RH-440 | 50 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T70RH-440 | 70 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T101RH-440 | 100 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T151RH-440 | 150 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T201RH-440 | 200 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T251RH-440 | 250 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T401RH-440 | 400 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T501RH-440 | 500 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T801RH-440 | 800 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-14D120T102RH-440 | 1000 | 440 | 620 | 1.4 | 133 | 112 | 84 | MZFLY-18D120T30RH-440 | 30 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T45RH-440 | 45 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T50RH-440 | 50 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T70RH-440 | 70 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T101RH-440 | 100 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T151RH-440 | 150 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T201RH-440 | 200 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T251RH-440 | 250 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T401RH-440 | 400 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T501RH-440 | 500 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T801RH-440 | 800 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D120T102RH-440 | 1000 | 440 | 620 | 2.1 | 200 | 168 | 126 | MZFLY-18D130T56RH-440 | 56 | 440 | 620 | 2.1 | 220 | 190 | 147 | MZFLY-18D135T30RH-440 | 30 | 440 | 620 | 2.1 | 230 | 200 | 157 | MZFLY-20D120T30RH-440 | 30 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T45RH-440 | 45 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T50RH-440 | 50 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T70RH-440 | 70 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T101RH-440 | 100 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T151RH-440 | 150 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T201RH-440 | 200 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T251RH-440 | 250 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T401RH-440 | 400 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T501RH-440 | 500 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T801RH-440 | 800 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D120T102RH-440 | 1000 | 440 | 620 | 2.6 | 247 | 208 | 156 | MZFLY-20D130T56RH-440 | 56 | 440 | 620 | 2.6 | 273 | 234 | 182 | MZFLY-20D135T30RH-440 | 30 | 440 | 620 | 2.6 | 286 | 247 | 195 | MZFLY-22D120T30RH-440 | 30 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T45RH-440 | 45 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T50RH-440 | 50 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T70RH-440 | 70 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T101RH-440 | 100 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T151RH-440 | 150 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T201RH-440 | 200 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T251RH-440 | 250 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T401RH-440 | 400 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T501RH-440 | 500 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T801RH-440 | 800 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-22D120T102RH-440 | 1000 | 440 | 620 | 3.5 | 322 | 280 | 210 | MZFLY-27D120T25RH-440 | 25 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T30RH-440 | 30 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T45RH-440 | 45 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T50RH-440 | 50 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T70RH-440 | 70 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T101RH-440 | 100 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T151RH-440 | 150 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T201RH-440 | 200 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T251RH-440 | 250 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T401RH-440 | 400 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T501RH-440 | 500 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T801RH-440 | 800 | 440 | 620 | 5.4 | 513 | 432 | 324 | MZFLY-27D120T102RH-440 | 1000 | 440 | 620 | 5.4 | 513 | 432 | 324 | 工频电压480Vac | MZFLY-18D130T121RH-480 | 120 | 480 | 680 | 2.1 | 220 | 189 | 147 | 工频电压560Vac | MZFLY-14D110T501RH-560 | 500 | 560 | 800 | 1.4 | 120 | 98 | 70 | MZFLY-18D130T101RH-560 | 100 | 560 | 800 | 2.3 | 241 | 207 | 161 | 工频电压680Vac | | MZFLY-14D120T50RH-680 | 50 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T70RH-680 | 70 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T101RH-680 | 100 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T121RH-680 | 120 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T151RH-680 | 150 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T201RH-680 | 200 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T251RH-680 | 250 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T351RH-680 | 350 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T501RH-680 | 500 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T801RH-680 | 800 | 680 | 1000 | 2.2 | 210 | 176 | 132 | | MZFLY-14D120T102RH-680 | 1000 | 680 | 1000 | 2.2 | 210 | 176 | 132 | MZFLY-18D120T50RH-680 | 50 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T70RH-680 | 70 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T101RH-680 | 100 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T151RH-680 | 150 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T201RH-680 | 200 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T251RH-680 | 250 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T401RH-680 | 400 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T501RH-680 | 500 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T801RH-680 | 800 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-18D120T102RH-680 | 1000 | 680 | 1000 | 3.5 | 322 | 280 | 210 | MZFLY-20D120T50RH-680 | 50 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T70RH-680 | 70 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T101RH-680 | 100 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T151RH-680 | 150 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T201RH-680 | 200 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T251RH-680 | 250 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T401RH-680 | 400 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T501RH-680 | 500 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T801RH-680 | 800 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-20D120T102RH-680 | 1000 | 680 | 1000 | 4.5 | 428 | 360 | 270 | MZFLY-22D120T50RH-680 | 50 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T70RH-680 | 70 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T101RH-680 | 100 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T151RH-680 | 150 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T201RH-680 | 200 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T251RH-680 | 250 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T401RH-680 | 400 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T501RH-680 | 500 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T801RH-680 | 800 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-22D120T102RH-680 | 1000 | 680 | 1000 | 5.45 | 517 | 436 | 320 | MZFLY-27D120T30RH-680 | 30 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T45RH-680 | 45 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T50RH-680 | 50 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T70RH-680 | 70 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T101RH-680 | 100 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T151RH-680 | 150 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T201RH-680 | 200 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T251RH-680 | 250 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T401RH-680 | 400 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T501RH-680 | 500 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T801RH-680 | 800 | 680 | 1000 | 8.50 | 810 | 680 | 510 | MZFLY-27D120T102RH-680 | 1000 | 680 | 1000 | 8.50 | 810 | 680 | 510 |
l 典型应用电路:
 Ⅱ选型
根据下列公式来选择充电电容
C : 滤波电容. 0.7:安全系数
Tc: PTC的居里温度Ta :环境温度
V : 电容器充电电压(V=1.414xVs)
ENon60=0.7x(Tc-Ta)xCth
ENon60: 最大不作动能量@ 60℃(Ta= 60) 华巨电子热敏电阻厂家：www.sinochip.net
|
